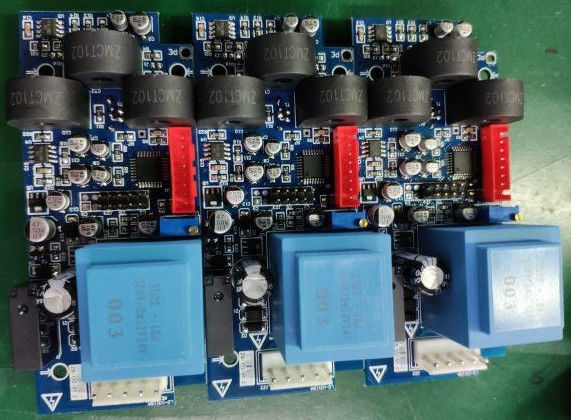

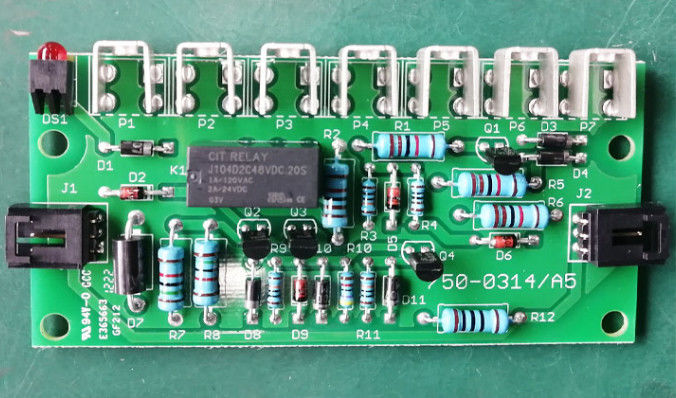

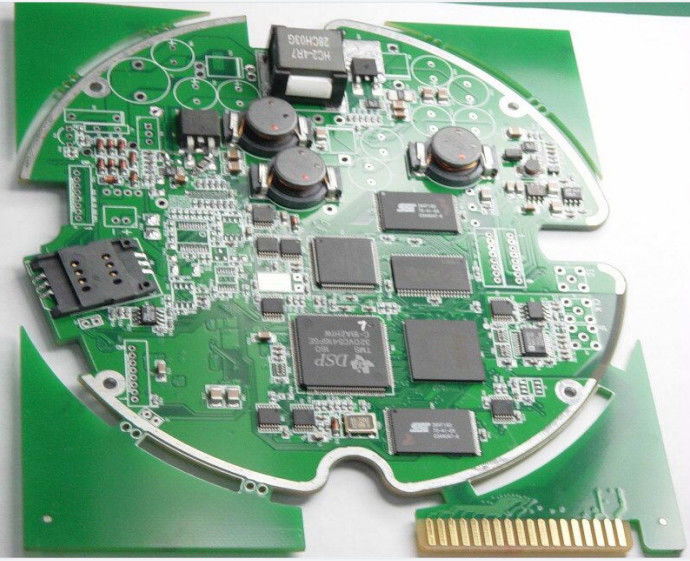

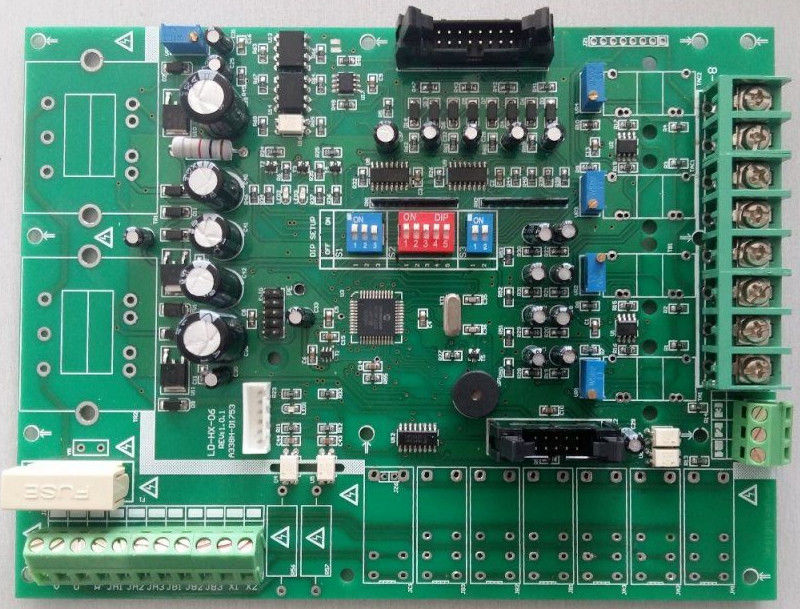

PCB Manufacturing And Assembly For Communication

PCB Manufacturing And Assembly For Communication

PCB Assembly for Communication

PCB Manufacturing and Assembly

Communication ems pcba

Place of Origin:

China or Cambodia

Brand Name:

Suntek

Certification:

ISO9001 ISO13485 IATF16949 UL

Model Number:

F016-006

Contact Us
Request A Quote
Product Details
Material:
FR4(Tg130-Tg180)
Thickness:
0.4mm-5mm
Layer:
1L-32L
Size At Max.:
1200*400mm
Hole Min.:
0.1mm
LW/LS Min.:
0.05mm
Copper:
0.5--10OZ
Surface:
HASL,ENIG,OSP,Hard Plating,Immersion Tin
Solder Mask:
Green,Blue,Black,Red,White,Matt Color
Footprint:
BGA,QFN,DFN,0201
Solder Type:
Lead Or Lead Free Rohs
Certificate:
ISO9001,ISO13485,IATF16949 And UL
MOQ:
1pc
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Customized products
Packaging Details
By ESD bags and carton
Delivery Time
5-7days after all components kitted
Payment Terms
TT,Paypal
RELATED PRODUCTS
Contact Us
0086-731-84874736
Contact Now
Product Description

Printed Circuit Board Fabrication and Assembly for Communication products

About Suntek Group:

Suntek is a leading supplier in EMS field with one-stop solution for FCB/FPC assembly,Cable assembly,and Box-build assembly.

Suntek Electronics Co., Ltd,as the major facility, located in Hunan Prov,China;

BLSuntek Electronics Co., Ltd,as the new facility,located in Kandal Prov,Cambodia.

With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified,

We deliver qualified products with competitive price to clients from all over the world.



A Contract Electronics Manufacturing Services Provider

Suntek Capability:

Quality Grade Standard IPC 2-3
Assembly Technology • SMD Stencils •PCB Fabrication • SMT PCB Assembly • THT assembly • Cable and Wire Harness Assembly
• Conformal Coating • Box Build Assembly • Final product assembly
Value Added Services • Component Sourcing • Packing and delivery • DFM • Packing and delivery • PCBA sample • Rework
• IC Programming • NPI Report
Company Certifications • ISO9001 • IATF16949 • ISO13485 • UL
Order Capacity • No requirements of MOQ (Minimum Order Quantity)
Testing Process • QC manual inspection • SPI(Solder Paste Inspection) • X-ray • FAI(first article inspection) • ICT • FCT • Aging test
• Reliability test





One-Stop Solution EMS Service:

OEM service
Layers 1-32 Layers Copper weight 0.5 oZ~10 oZ
Material FR4(Tg 135-Tg180) 94v0,Rogers,Aluminum Board cutting Shear,V-score,tab-routed
Board type Rigid, flexable, rigid-flexable Silk screen Single double-sided green LPI etc
Board shape Rectangular,round,slots,cutouts etc Design file format Gerber, CAD,.BRD
Board Thickness 0.2~5.0mm,Flex 0.01~0.25“ Bom format

Excel,PDF





PCB Assembly

1)State of the art equipments which include Desen Printing press,Samsung SMT, JT lead-free re-flow ovens,

lead-free wave-soldering,BGA rework base,AI machine.

2) Surface mount,through-hole,BGA,QFP and QFN,0201 parts assembling.

3) AOl testing(X-ray for BGA package) for every piece board.

4)First article inspection before SMD process and First completed sample before DIP process.

5)Programming and function testing .

6)Conformal coating and Glue





PCBA/Wire Harness/Box build Application:

PCB Manufacturing And Assembly For Communication 0





Quality Control:

1)Our target: 95% customers satisfied.

2)Our quality policy: Continuous improvement makes the makes the perfect quality, and reach a win-win relationship with customers.

3)Our solution: One-stop, Flexible, Continuous improvement.

4)Our business philosophy: Quality Wins Market, Ideas Create The Future.

5)Our vision: The long-term win-win partners in EMS field.

PCB Manufacturing And Assembly For Communication 1



Q&A

Q1.What is needed for quotation?

A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for production?

A: Gerber file: CAM350, Protel 99SE, P-CAD 2001 PCB

BOM: Excel (PDF,word,txt)

Q3. Are my files safe?

A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process. NDA can be confirmed and signed at anytime.

Q4. MOQ?

A: There is no MOQ in Suntek. We are able to handle Small as well as large volume production with flexibility.

Q5.Shipping cost?

A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

Q6. Do you accept process materials supplied by clients?

A :Yes, we can provide all the components,or some components/all components consigned by customer is also acceptable.
