BGA & Fine-Pitch 0201 SMT PCB Assembly
As components shrink to fine-pitch BGA, 0201 and 01005 passives, placement precision becomes critical to product reliability. Our BGA and fine pitch SMT PCB assembly line delivers high density interconnect PCBA with 100% X-Ray inspection and AOI to guarantee solder joint integrity on every board.
Key Features
- Fine pitch 0.35mm BGA, 0201 and 01005 component placement
- 100% X-Ray inspection of BGA and QFN solder joints
- AOI and ICT combined for high yield and reliability
- Multi-layer HDI build up to 32 layers with ENIG finish
- Suitable for high density, high reliability applications
About Suntek Group:
1) We offer One-stop PCB/FPC,PCB assembly,Cable assembly and Box build assembly service
2) 13-years of turnkey OEM/ODM experience
3) We can provide FR4,Rogers,Aluminum PCB and PI FPCs
4) Timely customizations PCBs and PCBAs according your BOM list and Gerber files.
Our Manufacturing Capability
|
Item
|
Paramter
|
|
Board Type:
|
Rigid PCB, Flexible PCB, metal core PCB,Rigid-Flex PCB
|
|
Board Shape:
|
Rectangular, Circular and any irregular Shapes
|
|
Max Size:
|
400mm * 1200mm
|
|
Min Package:
|
0201
|
|
Fine Pitch Parts:
|
0.25mm
|
|
BGA Package:
|
Acceptable
|
|
DIP Capacity:
|
3 DIP lines and 1 AI assembly line
|
|
Parts Sourcing:
|
All by Suntek or partical consigned by customer
|
|
Parts Package:
|
Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk
|
|
Testing:
|
Visual inspection, AOI, X-RAY,Functional Testing
|
|
Types of Solder:
|
Lead or Lea-free (RoHS Compliant) assembly
|
|
Assembly Option:
|
Surface mount (SMT), Through-hole (DIP), Mixed technology
(SMT & Thru-hole)
|
|
Stencils:
|
Laser cut stainless steel stencils,step-down stencil
|
|
File Formats:
|
Bill of Materials,PCB(Gerber Files),Pick-N-Place File (XYRS)
|
|
Quality Grade:
|
IPC-A-610 Class 2/Class 3
|

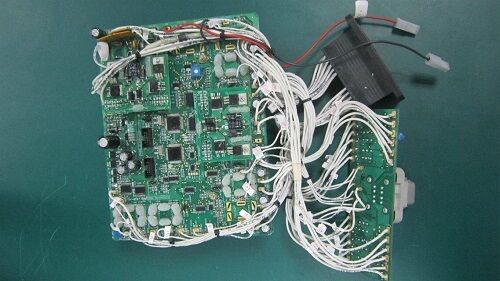

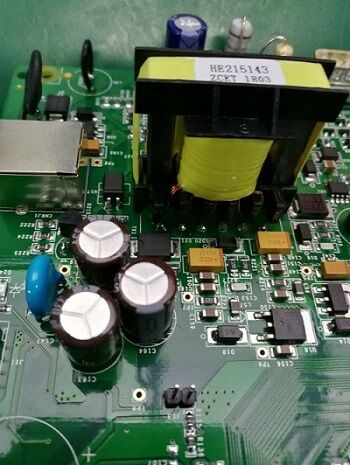

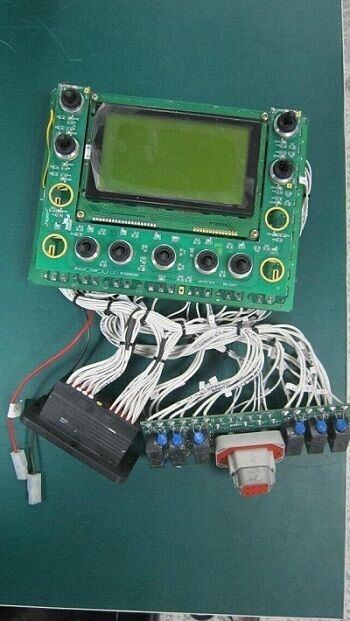

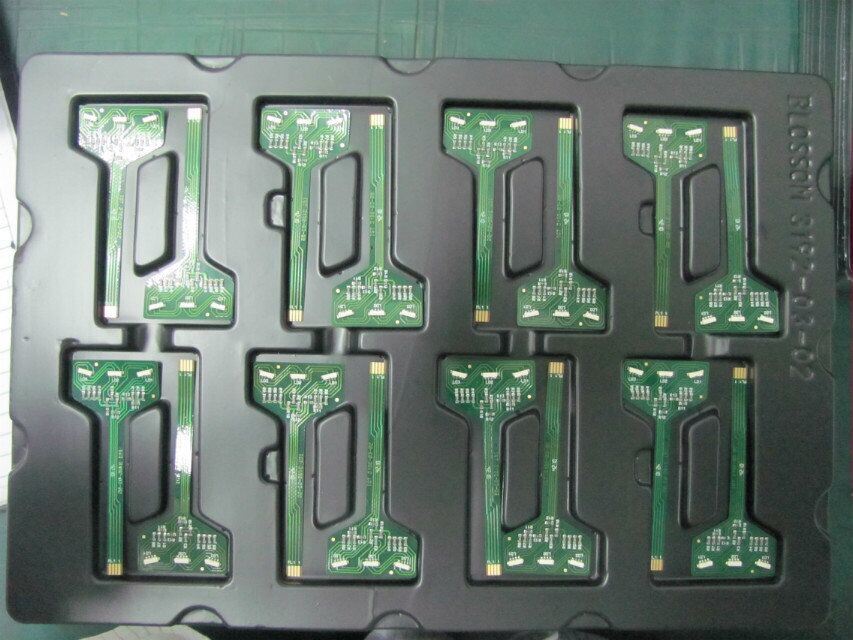

Suntek PCBA factory photos:
PCBA inspection and testing:
EMS services Q&A
Q1.What is needed for quotation?
A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350, Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process. NDA can be confirmed and signed at anytime.
Q4. MOQ?
A: There is no MOQ in Suntek. We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q6. Do you accept process materials supplied by clients?
A :Yes, we can provide all the components,or some components/all components consigned by customer is also acceptable.
