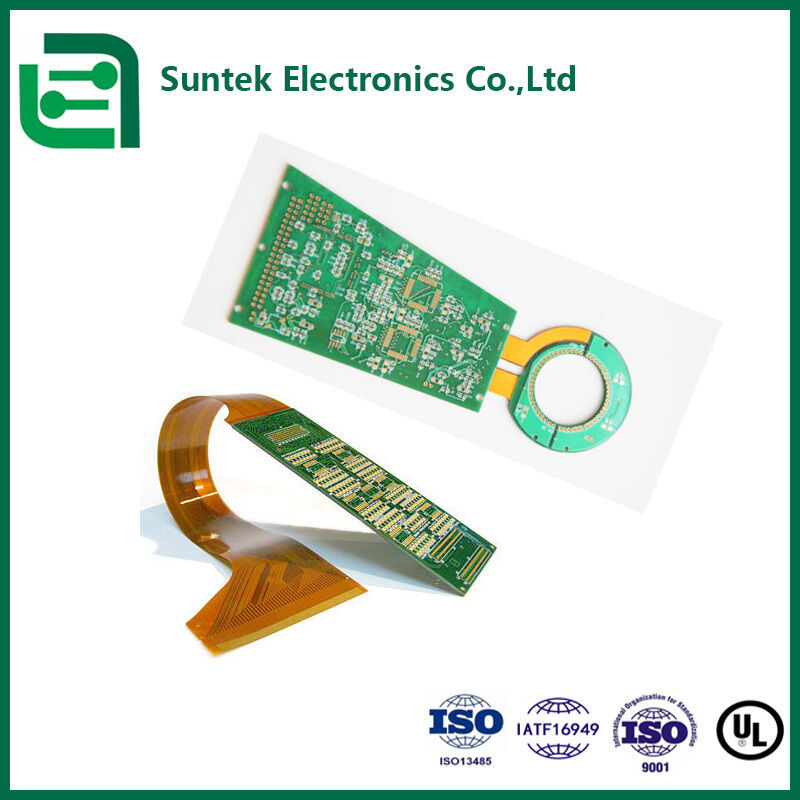

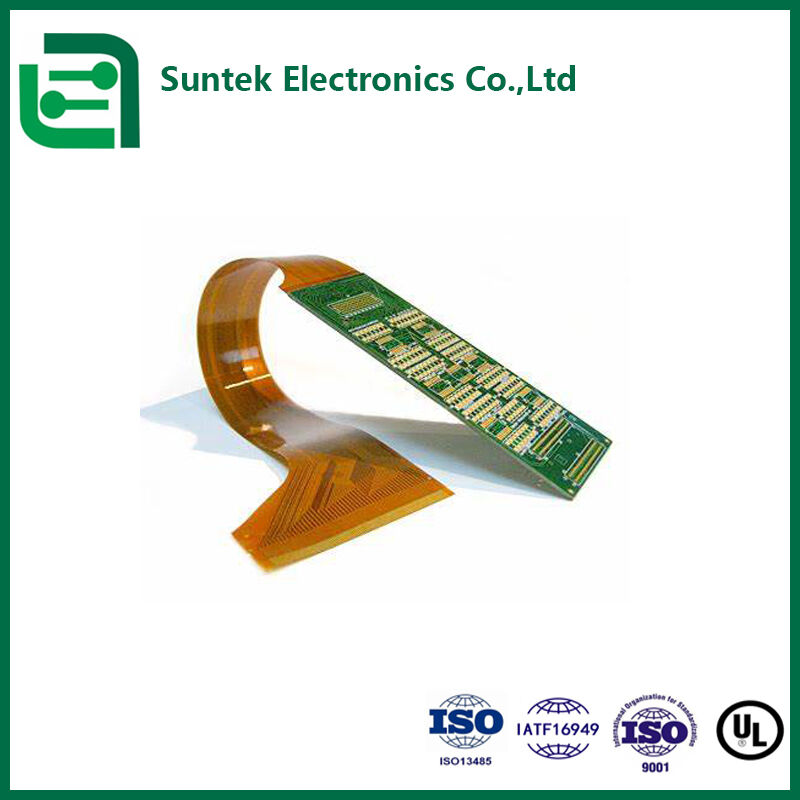

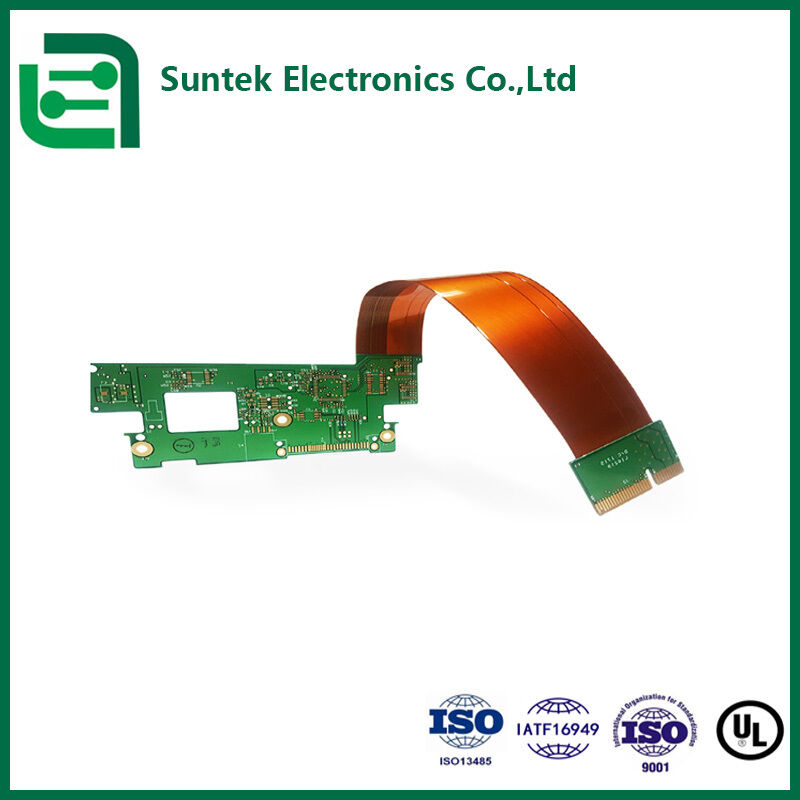

Name: Rigid-Flex 6 Layers PCB Assembly PCBA Manufacturing with RoHS Compliant
Brand: Suntek Electronics Co., Ltd.
SKU: FPC1205
Price: 49.10 USD
Availability: InStock

Home > Products > EMS PCBA >

Rigid-Flex 6 Layers PCB Assembly PCBA Manufacturing with RoHS Compliant

6 Layers PCB Assembly

RoHS Compliant PCBA

Rigid-Flex Printed Circuit Board Assembly

Place of Origin:

China or Cambodia

Brand Name:

Suntek/BLSuntek

Certification:

ISO9001 ISO13485 IATF16949 UL

Model Number:

FPC1205

Request A Quote

Product Details

Surface:

HASL,ENIG,OSP,Hard Plating,Immersion Tin

Material:

Thickness:

0.5mm

Soldering Mask Color:

Yellow

X-RAY Inspection:

For BGA,OFN,QFP With Bottom Pads

Copper:

0.5OZ-5OZ

Compatibility:

Universal

Power Output:

High

Product Complience:

ROHS

Layer:

Double Side

Payment & Shipping Terms

Minimum Order Quantity

No Limited

Price

Customized products

Packaging Details

By ESD bags and carton

Delivery Time

5-7days after all components kitted

Payment Terms

T/T

Flexible PCB Assembly Circuit Board Manufacturing with RoHS Complaint

Get Best Price

Video

Custom SMT THT PCBA Assembly for Sensor X-ray Inspection

Get Best Price

Video

Aluminum PCB Board for LED Bulb Light AC Circuit

Get Best Price

Video

Contract Electronic Assembly Fabrication THT SMT 2OZ Copper HDI PCB

Get Best Price

Contact Now

Product Description

Rigid and Rigid-Flex 6 Layers PCB Assembly Manufacturing with RoHS Compliance

Suntek Contract Factory

Suntek Group is a leading supplier in the EMS field with one-stop solutions for PCB/FPC assembly, cable assembly, mixed technology assembly, and box-building services.

Suntek Electronics Co., Ltd, as the major facility, is located in Hunan Province, China. BLSuntek Electronics Co., Ltd, as the new facility, is located in Kandal Province, Cambodia.

Capabilities Overview

Layers	Rigid PCB 2-40+ Layers, Rigid-flex PCB 1-10 Layers
Panel Size (max)	21" x 24"
PCB Thickness	0.016" to 0.120"
Line & Spaces	0.003" / 0.003" Inner Layers; 0.004" Outer Layers
Hole Size	0.006" Thru Hole (Finished Size) and 0.004" Buried Via
Materials	FR4, High Tg, Rogers, Halogen-free material, Teflon, Polyimide
Surface Finishes	ENi/IAu, OSP, Lead-free HASL, Immersion Gold/Silver, Immersion Tin
Special Products	Blind/Buried Via (HDI 2+N+2), Rigid Flex

Application

Packaging and Shipping

Packaging: Flexible PCB Assembly products are packaged in sturdy cardboard boxes with bubble wrap protection. Each box is labeled with product name, quantity, and handling instructions for easy identification.

Shipping: Products are shipped via reliable courier services with transit insurance. Customers receive tracking numbers and must sign for package receipt upon delivery.

Our Comprehensive Services

PCB/FPC fabrication
Components sourcing
PCB/FPC assembly
Custom cable/harness assembly
Box build assembly

Technical Services

SMT, THT, BGA, 0201 Chips assembly
AOI, X-Ray, ICT, FT, Burn-in testing
Conformal coating or gluing
High-mix, small to medium volume production

Certified by ISO9001, ISO13485, TS16949 and UL.

Our Competitive Advantages

Quick Response: Efficient communication and project management
Cost-Effective Quality: Reasonable pricing based on superior quality standards
One-Stop Service: Complete solutions including components and OEM services
Reliability: All products manufactured according to customer design files with 1-year warranties
Confidentiality: Strict protection of intellectual property with comprehensive confidentiality agreements
Flexibility: Custom PCB prototypes and small PCB assembly orders with rapid lead times

What Suntek Can Offer
