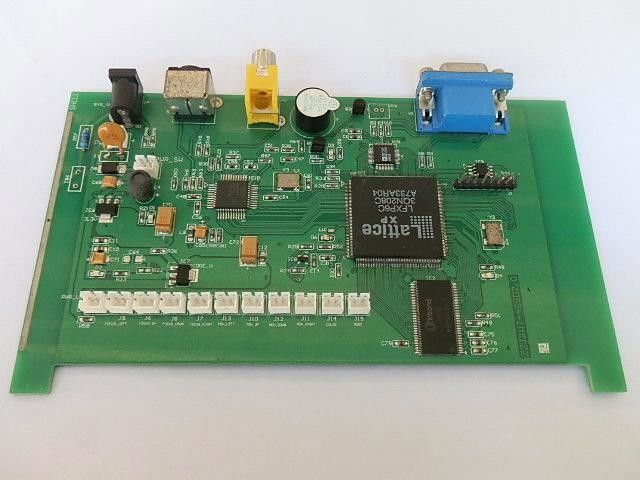

White Silkscreen Industrial Control PCB Assembly for Automotive Electronics Manufacturing

Product Description:

The Automotive PCB Assembly product is a high-quality electronic component that is essential for the functioning of various automotive systems. This product is designed with precision using 0402+BGA0.5MM materials, ensuring reliability and durability in challenging automotive environments.

One of the key features of this Automotive PCB Assembly is the Double Side PCB Assembly design, providing increased flexibility and efficiency in electronic circuits. The use of Chip On Board Assembly technology further enhances the performance and functionality of this product, making it suitable for a wide range of automotive applications.

When it comes to PCB manufacturing, the Immersion Gold process used in this product ensures superior conductivity and corrosion resistance, extending the lifespan of the PCB assembly. The gold plating also enhances solderability and ensures consistent performance over time.

With a minimum line width of 3mil and a hole size of 0.1mm, this Automotive PCB Assembly offers precise and accurate connections for electronic components, contributing to the overall reliability and performance of automotive systems. The PCB size of 220mm*186mm provides ample space for integrating complex circuits and components, making it suitable for diverse automotive applications.

In conclusion, the Automotive PCB Assembly product combines advanced technology, high-quality materials, and precise manufacturing processes to deliver a reliable and efficient electronic component for automotive systems. Its Double Side PCB Assembly design, Chip On Board Assembly technology, Immersion Gold process, and precise specifications make it an ideal choice for automotive electronics applications requiring high performance and durability.

Features:

• Product Name: Automotive PCB Assembly
• PCB Size: 220mm*186mm
• PCBA Service: SMT+THT+FT
• Layers: 2-8
• Point: 359
• Material Quantity: 316 Pcs
• Keywords: Industrial Control PCB Assembly, Car Engine Assembly Kit, Double Side PCB Assembly

Technical Parameters:

Applications:

Automotive PCB Assembly is a crucial component in the manufacturing process of various automotive electronics. With a minimum line width of 3mil and a material quantity of 316 pieces, this product is designed to meet the high standards required for automotive applications. The PCB Quality System adheres to ROHS standards, ensuring the safety and reliability of the assembled electronics.

The versatile surface options including HASL, ENIG, OSP, Hard Plating, and Immersion Tin make this Automotive PCB Assembly suitable for a wide range of scenarios in the automotive industry. Whether it is used in car engine assembly kits, industrial control PCB assemblies, or other automotive electronics applications, this product provides consistent performance and durability.

Automotive PCB Assembly is ideal for use in vehicles to control various electronic systems such as engine management, infotainment, safety features, and more. The robust design and reliable performance of this product make it a preferred choice for automotive manufacturers looking to integrate advanced electronics into their vehicles.

Industrial Control PCB Assembly is another key application scenario where this product excels. With its high precision and quality materials, the Automotive PCB Assembly ensures the smooth operation of industrial control systems in manufacturing plants, machinery, and other industrial settings.

Car engine assembly kits benefit greatly from the use of Automotive PCB Assembly for incorporating advanced electronic control units, sensors, and communication modules. The precise line width and quality surface finishes contribute to the overall efficiency and performance of the engine systems in modern vehicles.

Customization:

Product Customization Services for the Automotive PCB Assembly:

- Pcb Quality System: ROHS

- Pcb Gold Process: Immersion Gold

- Pcba Service: SMT+THT+FT

- Minimum Line Width: 3mil

- Base Material: FR-4

Keywords: Industrial Control PCB Assembly, Car Engine Assembly Kit

Support and Services:

Our Automotive PCB Assembly product comes with comprehensive Product Technical Support and Services to ensure optimal performance and reliability. Our team of experts is available to assist with any technical queries, troubleshooting, and product-related issues. We offer services such as product training, installation support, and ongoing maintenance to help maximize the efficiency of your automotive PCB assembly. Rest assured that our dedicated technical support team is committed to providing prompt and effective solutions to meet your needs.

Packing and Shipping:

Product Packaging:

The Automotive PCB Assembly is carefully packaged in a sturdy cardboard box to ensure safe transportation. Each component is securely placed within the box with protective padding to prevent damage during shipping.

Shipping:

We offer reliable shipping services to ensure that your Automotive PCB Assembly reaches you in perfect condition. The product will be shipped using a trusted courier service and you will receive tracking information to monitor the delivery status.

FAQ:

Q: What is Automotive PCB Assembly?

A: Automotive PCB Assembly is a specialized circuit board that is designed for use in automotive applications, providing electrical connections for various components within a vehicle.

Q: What are the key features of Automotive PCB Assembly?

A: The key features of Automotive PCB Assembly include high temperature resistance, vibration resistance, compact design, and reliability in harsh automotive environments.

Q: How is Automotive PCB Assembly different from standard PCBs?

A: Automotive PCB Assembly is specifically designed and manufactured to meet the unique requirements of automotive applications, such as temperature fluctuations, moisture exposure, and mechanical stress, which standard PCBs may not withstand.

Q: What are the typical applications of Automotive PCB Assembly?

A: Automotive PCB Assembly is commonly used in various automotive systems and components, including engine control units (ECUs), infotainment systems, dashboard displays, lighting systems, and sensors.

Q: How can I ensure the quality and reliability of Automotive PCB Assembly?

A: To ensure the quality and reliability of Automotive PCB Assembly, it is important to source components from reputable suppliers, follow industry standards for assembly and testing, and conduct thorough quality control checks throughout the manufacturing process.
