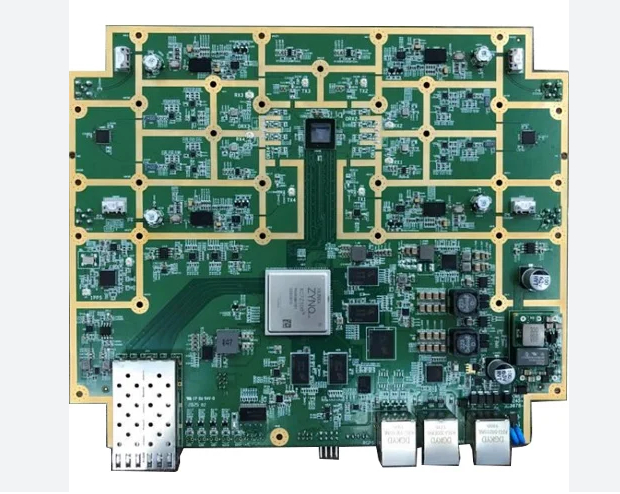

Name: Rigid-Flex Turn Key Pcb Assembly Low MOQ And certifications factory in China and Cambodia
Brand: Suntek Electronics Co., Ltd.
SKU: F9632-7582
Price: 1 USD
Availability: InStock

Home > products > Quick Turn PCB Assembly >

Rigid-Flex Turn Key Pcb Assembly Low MOQ And certifications factory in China and Cambodia

Place of Origin:

China/Cambodia

Brand Name:

Suntek

Certification:

ISO9001, ISO13485, TS16949 and UL E476377

Model Number:

F9632-7582

Request A Quote

Product Details

Place Of Origin:

China

Base Material:

FR4+PI, PI/Custom

Surface Treatment:

ENIG

Rohs Compliance:

Yes

Qty:

Support Prototype And Batch Production

Suface:

ENIG 2U

Copper Thickness:

0.5-6oz

Impedance Control:

50/90/100±10% Ohm

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

USD1

Packaging Details

Vacuum,Anti-static,ESD,Cartons

Delivery Time

1-2 weeks after all parts collected

Payment Terms

T/T,Paypal

Supply Ability

100pcs/hour

FR-4 PCB Assembly Factory IPC Class 2 Or 3 Standard in China and Cambodia

Get Best Price

Video

2L FR4 PCB Prototyping with ENIG Surface and 2oz Copper

Get Best Price

Video

4L FR4 Quick Turn PCB Assembly with Lead Free HASL

Get Best Price

Video

4L FR4 Quick Turn PCB Assembly with Lead Free HASL

Get Best Price

0086-731-84874736

Contact Now

Product Description

Suntek provide:

-PCB/FPC fabrication

-Components sourcing

-PCB/FPC assembly

-Custom cable/harness assembly

-Box build

Services as below:

-SMT, THT, BGA,0201 Chips assembly

-AOI, X-Ray, ICT, FT, Burn-in

-Conformal coating or gluing

-High-mix, small to medium volume

With certification by ISO9001, ISO13485, TS16949 and UL .

SMT Parameters:

H 高	◆SMT+ICT+THT+FT ◆SMT+ICT+THT+Harness+Assembly+FT	◆SMT machine(for printing,pick place,reflow soldering) ◆THT machine(for wave soldering) ◆Terminal machine...	◆AOI ◆X-RAY ◆injection molding machine ◆AI(Automatic Inserting machine)...
M 中	◆SMT+ICT ◆THT+FT ◆SMT+THT ◆THT+Harness+FT ◆Assembly+FT	◆ Genera SMD+DIP ◆ DIP parts+ Harness ◆SMD+DIP+Harness without injection molding	◆≤0201 SMD ◆BGA,LGA,FBGA,LCC+LGA ◆Harness+injection molding ◆Conformal coating
S 低	◆纯SMT(Only SMT) ◆纯THT(Only THT) ◆纯线束(Only Harness) ◆纯组装(Only Assembly)	◆代工代料 Material+ Assembly	◆设计+代工代料 Design+Meterial+Assembly
	low	higher	highest

Technology Involved:

Technology	Circuit	PCB/Flex/Metal PCB/Rigid-Flex	Parameter	Assembly Side	Single/Double
	Process	SMT		Min Size	10mm * 10mm
		THT		Max Size	410mm * 350mm
		Punch		Thickness	0.38mm ~ 6.00mm
		In-circuit Test Function Test		Min Chip	0201 chip
		Glue,Burn-in Conformal Coating		Fine-pitch	0.20mm
		BGA Re-work		BGA ball size	0.28mm

Special Technology Involved

◆ IC Programming

◆ BGA rework

◆ Chip on Board/COB

◆ Eutectic soldering

◆ Auto-Gluing

◆ Conformal Coating

Assemly Flow Chart:
