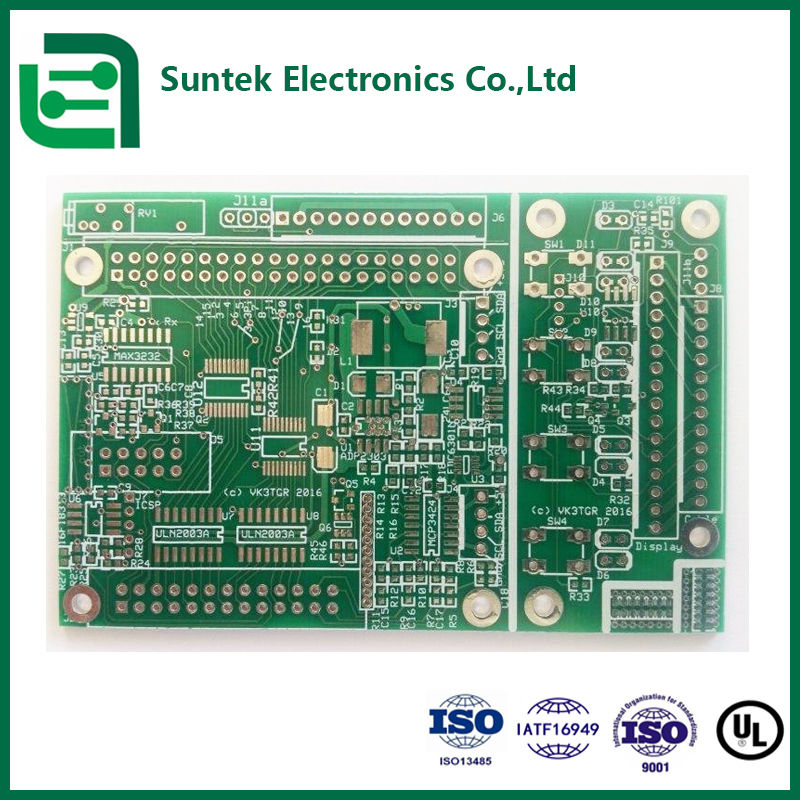

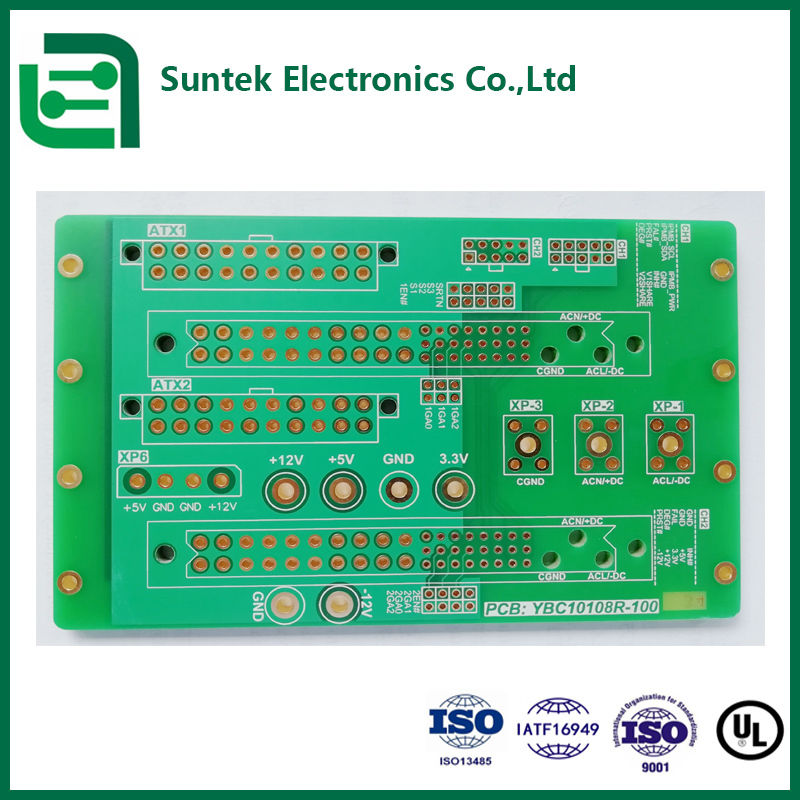

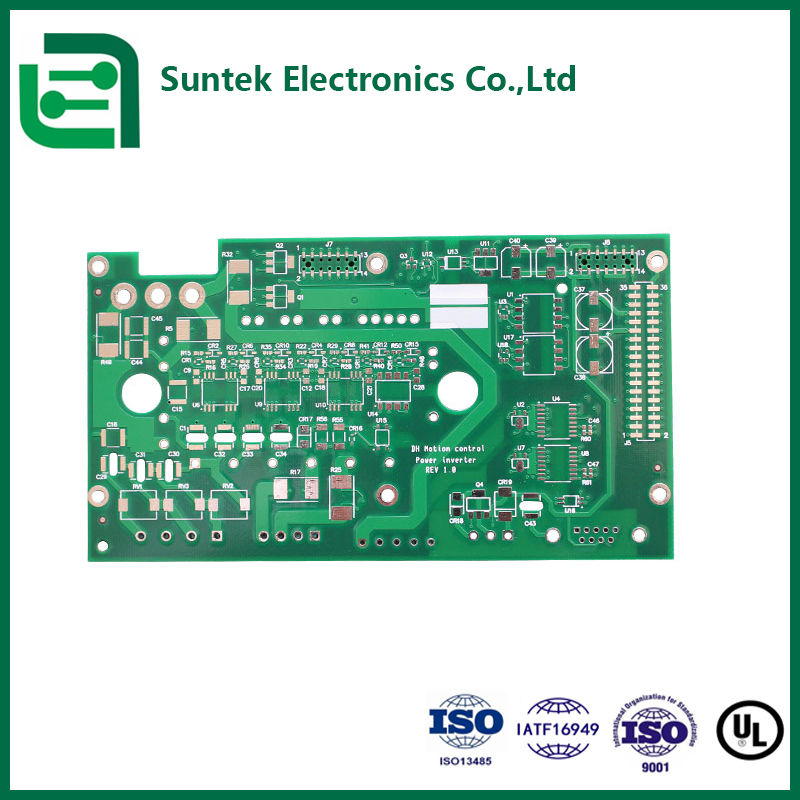

Prototype PCB Assembly Multilayer FR4 ENIG Lead Free HASL UL THT SMT PCB
Key Specifications/ Special Features:
| Layers: |
Rigid PCB 2 - 40 + Layers, Rigid-flex PCB 1 - 10Layers |
| Panel Size(max): |
21" x 24" |
| PCB Thickness: |
0.016" to 0.120" |
| Line & Spaces: |
0.003" / 0.003" Inner Layers; 0.004" Outer Layers |
| Hole Size: |
0.006" Thru Hole (Finished Size) and 0.004" Buried Via |
| Materials: |
FR4, High Tg, Rogers, Halogen-free material, Teflon, Polyimide |
| Surface Finishes: |
ENi/IAu, OSP, Lead-free HASL,Immersion Gold/Silver, Immersin Tin |
| Special Products: |
Blind/ Buried Via(HDI 2+N+2), Rigid Flex |
About Suntek Group:
Suntek Group is a contract supplier in EMS field with one-stop solution for FCB/FPC assembly,Cable assembly,and Box-build assembly.
Suntek Electronics Co., Ltd,as the major facility, located in Hunan Prov,China;
BLSuntek Electronics Co., Ltd,as the new facility,located in Kandal Prov,Cambodia.
With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified,
We deliver qualified products with competitive price to clients all over the world.
Application:
One-Stop EMS Service:
OEM service
| Layers |
1-32 Layers |
Copper weight |
0.5 oZ~10 oZ |
| Material |
FR4(Tg 135-Tg180) 94v0,Rogers,Aluminum |
Board cutting |
Shear,V-score,tab-routed |
| Board type |
Rigid, flexable, rigid-flexable |
Silk screen |
Single double-sided green LPI etc |
| Board shape |
Rectangular,round,slots,cutouts etc |
Design file format |
Gerber, CAD,.BRD |
| Board Thickness |
0.2~5.0mm,Flex 0.01~0.25 |
Bom format |
Excel,PDF |
Our company provide:
-PCB/FPC fabrication
-Components sourcing
-PCB/FPC assembly
-Custom cable/harness assembly
-Box build
Services as below:
-SMT, THT, BGA,0201 Chips assembly
-AOI, X-Ray, ICT, FT, Burn-in
-Conformal coating or gluing
-High-mix, small to medium volume
With certification by ISO9001, ISO13485, TS16949 and UL .
Why Choose Suntek?
As an experienced and reliable manufacturer,Suntek provides one stop service, including PCB manufacturing and PCB assembly for all customers in the global who has diversity requirements in their projects with our strong teams. It can help customers to save their time and money to
complete their products with the highest quality but favorable price in only one place.
Instant Quote
You will get our instant quote within 24 hours to 48 hours and positive feedback for all your specifications about your projects.
Strong Team
Our professional and experienced experts and engineers will give you the technical support from PCB design to the turnkey PCB assembly all the times. all questions can be answered in the whole process without time delay.
Automatic Equipment
All advanced automatic equipment helps us to improve working efficiency and cost efficiency. we will do everything possible to offer you the boards with the highest quality but competitive price on time.
After Sales Service
We will track all orders for all customers throughout. our customer service representatives will be online available to give you the instant update in every process.
FAQ:
Q1: How do you make sure the quality?
A1: Our Product is all 100% E-tested .PCB Assembly are with 100% AOI,ICT,FT and Visual checking,100% X-ray for BGA.
Q2: Can we visit your company?
A2: Of course,Welcome to visit our company, Suntek located in Xingsha Industrial Park, Changsha,Hunan province, China.
Q3: What is the lead time?
A3: It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity. It takes 15-20 working days for PCB assembly.
Q4: Will you keep our information and files secret?
A4: Sure,It is our basic principle to keep business secrets to protect our customers' designs.NDA can be signed at any time.
Q5. How to work with you?
A5: -Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days.
- Waiting for your company to confirm the price, order and payment terms.
- We will proceed the order.
PCB/PCBA Equipments:
With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified:
