Suntek Group is a leading supplier in EMS field with one-stop solution for PCB/FPC
assembly,Cable assembly,Mix technology assembly and Box-buildings.
Suntek Electronics Co., Ltd,as the major facility, located in Hunan Prov,China;
BLSuntek Electronics Co., Ltd,as the new facility,located in Kandal Prov,Cambodia.
Capabilities overview:
|
Layers:
|
Rigid PCB 2 - 40 + Layers, Rigid-flex PCB 1 - 10Layers
|
|
Panel Size(max):
|
21" x 24"
|
|
PCB Thickness:
|
0.016" to 0.120"
|
|
Line & Spaces:
|
0.003" / 0.003" Inner Layers; 0.004" Outer Layers
|
|
Hole Size:
|
0.006" Thru Hole (Finished Size) and 0.004" Buried Via
|
|
Materials:
|
FR4, High Tg, Rogers, Halogen-free material, Teflon, Polyimide
|
|
Surface Finishes:
|
ENi/IAu, OSP, Lead-free HASL,Immersion Gold/Silver, Immersion Tin
|
|
Special Products:
|

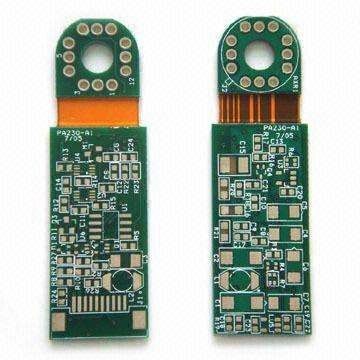

Blind/ Buried Via(HDI 2+N+2), Rigid Flex
|
HDI PCB Board - High-Density Interconnector PCB Panel
HDI PCB Board is an advanced interconnect PCB panel that utilizes the latest technology in high-density PCB design. With a board size of 300 * 210 mm and a thickness of 1.5 mm, it is compact and efficient, making it ideal for a wide range of applications.
The key feature of HDI PCB Board is its use of RO4350B glass epoxy material from Rogers Corp. This material has a high glass transition temperature of 280℃ and a low dielectric constant of <3.48, making it ideal for high-frequency and high-speed applications. It also has excellent thermal stability and high-temperature resistance, ensuring superior performance even in harsh environments.
At the heart of HDI PCB Board is its high-density interconnector technology. This allows for the integration of multiple circuit layers, resulting in a more compact design and higher wiring density. The precision manufacturing process ensures that the board has a high level of accuracy and reliability, making it suitable for use in critical applications.
To further enhance its performance, HDI PCB Board offers a stencil service. This allows for the precise placement of components during assembly, resulting in better signal integrity and improved overall performance. The compact design and superior performance of HDI PCB Board make it an ideal choice for a wide range of applications, including telecommunications, medical equipment, and aerospace systems.
In summary, HDI PCB Board is a high-density interconnector PCB panel that offers advanced interconnect PCB technology. With its use of RO4350B glass epoxy material, precision manufacturing, and stencil service, it delivers superior performance, high reliability, and high-temperature resistance. Choose HDI PCB Board for your next project and experience the benefits of high-density PCB design.
Features:
High Density Interconnection Printed Circuit Board
Advanced Interconnect PCB
Multi-Layer PCB
Number Of Layers: 6-Layer
Controlled Impedance: Yes
Small Size: 300 * 210 Mm
High Precision
Diverse Color Options: White, Black, Yellow, Red, Blue, etc.
High Reliability
Our supports
We ensure cost transparency, BOM cost breakdown sharing
We have components suppliers from the Global.
We have a written process to advise customers of any schdule delays or product quality problems,by:
(1)Customer service procedure
(2)RMA procedure
(3)8D reports
(4)PDCA(Plan-Do-Check-Action) in customer service
We respond to the complaints,issues and queries in 24 hours, by:
(1) Weekly reports
(2) Customer supporting team to review communication times
(3) Customer satisfaction questionnaire
Aftersales services:
(1) 1-year guarantee period for all of products
(2) FOC repair
(3) Quick compensation parts to replace defectives.
Our Target
We are always trying to supply competitive price,high quality,quick-delivery products.
We have advanced manufacturing equipments,professional technology,professional
engineer team,purchasing team,quality team and management team to guarantee
the high quality products and on time delivery.Our products are widely used in
industrial control,auto,telecommunications,medical equipment,consumer electronics and etc.
