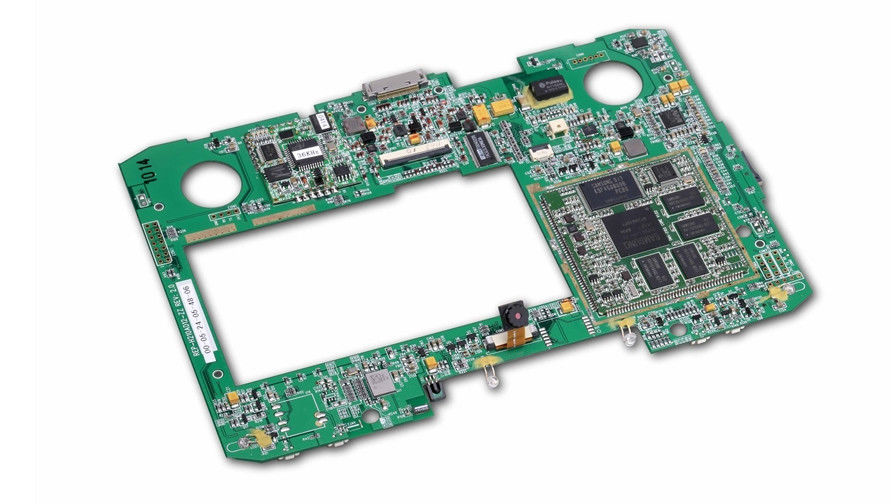

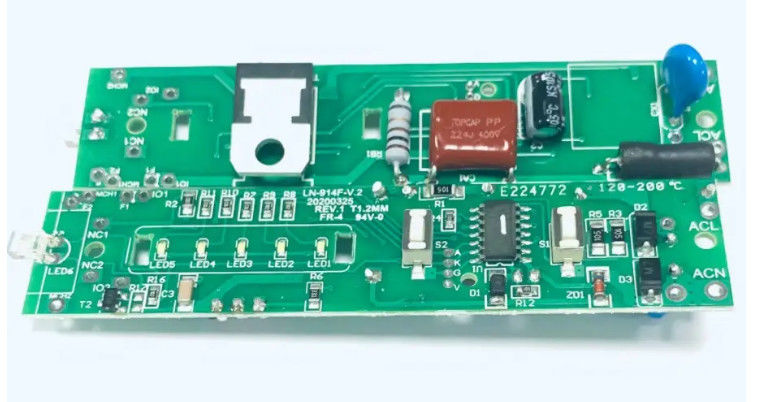

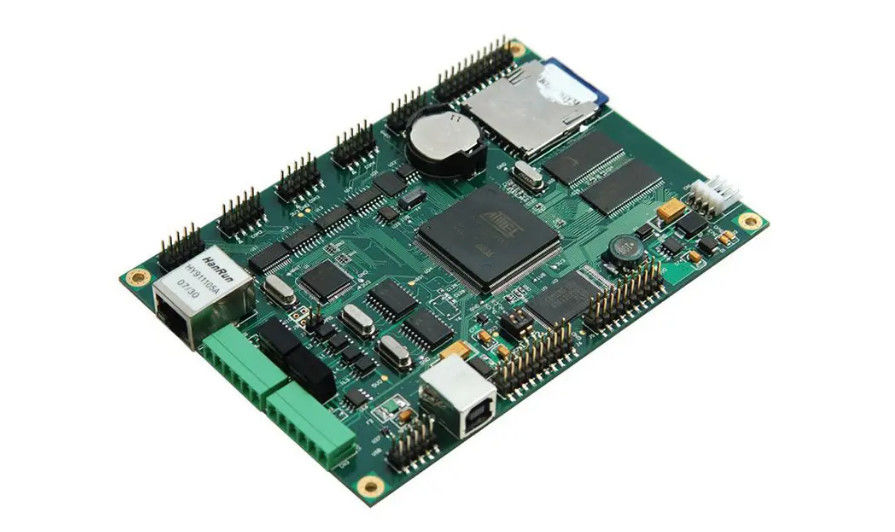

Red,Green,Black,Purple,White Soldermask with PVC Cable ENIG 2U Surface Finish OSP 0.5-0.5um
SMT Parameters:
| Technology |
Circuit |
PCB/Flex/Metal PCB/Rigid-Flex |
Parameter |
Assembly Side |
Single/Double |
| Process |
SMT |
Min Size |
10mm * 10mm |
| THT |
Max Size |
410mm * 350mm |
| Punch |
Thickness |
0.38mm ~ 6.00mm |
| In-circuit Test Function Test |
Min Chip |
0201 chip |
| Glue,Burn-in Conformal Coating |
Fine-pitch |
0.20mm |
| BGA Re-work |
BGA ball size |
0.28mm |
Technology Involved:
| H 高 |
◆SMT+ICT+THT+FT ◆SMT+ICT+THT+Harness+Assembly+FT |
◆SMT machine(for printing,pick place,reflow soldering) ◆THT machine(for wave soldering) ◆Terminal machine... |
◆AOI ◆X-RAY ◆injection molding machine ◆AI(Automatic Inserting machine)... |
| M 中 |
◆SMT+ICT ◆THT+FT ◆SMT+THT ◆THT+Harness+FT ◆Assembly+FT |
◆ Genera SMD+DIP ◆ DIP parts+ Harness ◆SMD+DIP+Harness without injection molding |
◆≤0201 SMD ◆BGA,LGA,FBGA,LCC+LGA ◆Harness+injection molding ◆Conformal coating |
| S 低 |
◆纯SMT(Only SMT) ◆纯THT(Only THT) ◆纯线束(Only Harness) ◆纯组装(Only Assembly) |
◆代工代料 Material+ Assembly |
◆设计+代工代料 Design+Meterial+Assembly |
| |
low |
higher |
highest |
Special Technology Involved
◆ IC Programming
◆ BGA rework
◆ Chip on Board/COB
◆ Eutectic soldering
◆ Auto-Gluing
◆ Conformal Coating
-
Assemly Flow Chart:
We provide EMS one-stop solution for our customers:

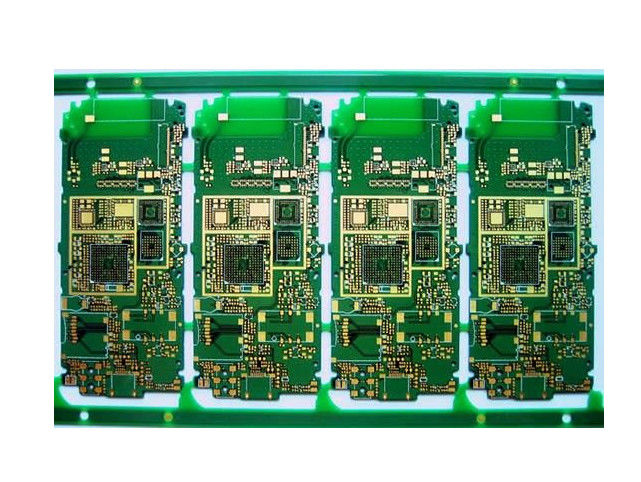

※ PCB, Flex, Rigid-flex, MPCB,HDI bare board
※ Surface Mount Assembly (SMT)
※ Through Hole Technology (THT)
※ Ball Grid Array (BGA) assembly and inspection
※ Wire harness & cable assembly
※ Box Build and Final assembly
※ Lead-Free,RoHS,Reach compliance
※ Conventional / mixed technology assembly
※ High-mixed/Low & Mid volume supporting
※ Full / part procurement of material
Alliance with global electronic suppliers
※ Assembly from customer consiged material
※ Product test (ICT and functional)
※ Full turnkey & Consign business supporting
