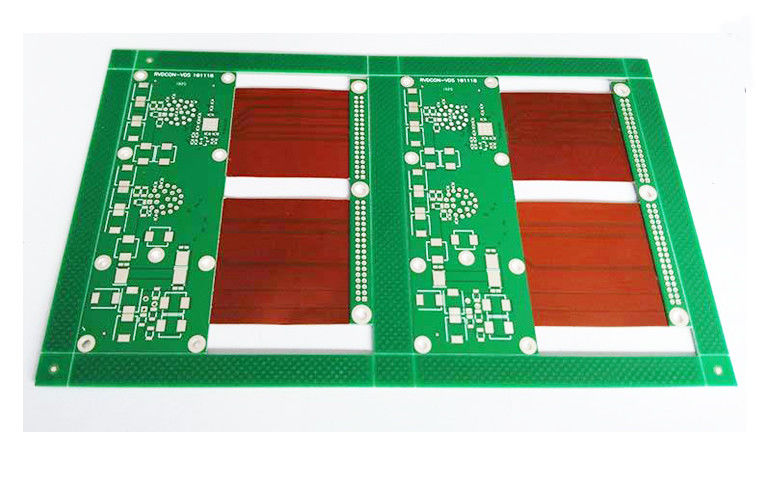

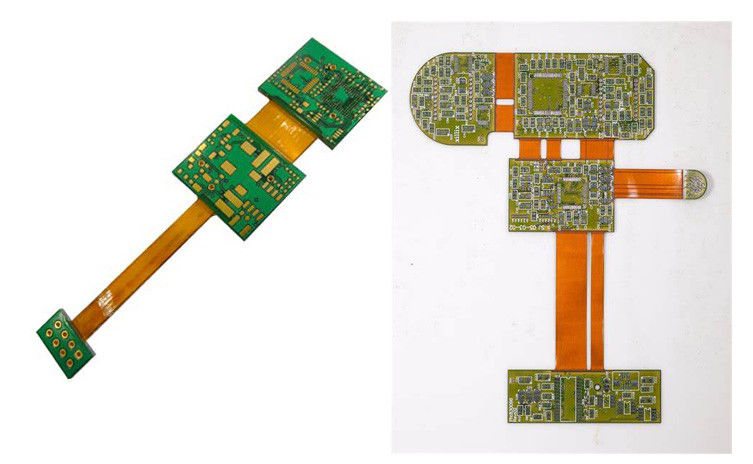

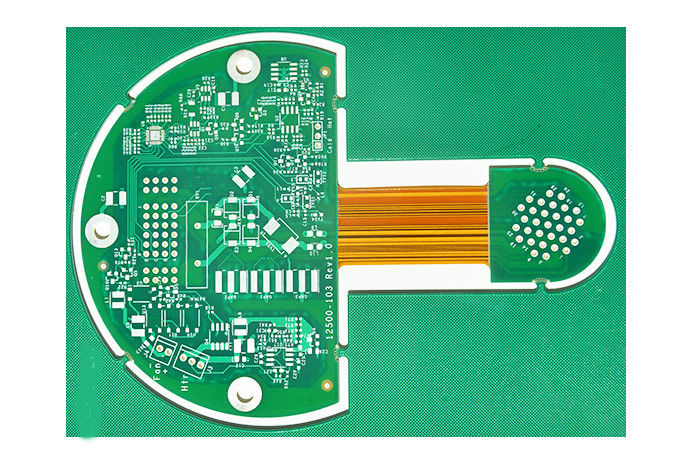

Name: OSP 5 Layer Quick Turn Pcb Manufacturer Factory
Brand: Suntek Electronics Co., Ltd.
SKU: F12365PCBA
Price: 50.00 USD
Availability: InStock

Home > products > Quick Turn PCB Assembly >

OSP 5 Layer Quick Turn Pcb Manufacturer Factory

quick turn pcb factory

quick turn pcb manufacturer

Quickturn Turnkey PCB

Place of Origin:

China

Brand Name:

Suntek

Certification:

ISO9001, ISO13485, TS16949 and UL E476377

Model Number:

F12365PCBA

Request A Quote

OSP 5 Layer Quick Turn Pcb Manufacturer Factory

Product Details

Material:

FR-4

Surface Technical:

OSP

Layers:

4 Layers

Minimum Hole Size:

0.2 Mm

Application:

Bluetooth Speaker

Layer Count:

Customized:

Yes

Minimum Hole Diameter:

0.10 Mm

Payment & Shipping Terms

Minimum Order Quantity

5pcs

Price

USD+1-100+PCS

Packaging Details

Vacuum,Anti-static,ESD,Cartons

Delivery Time

3-6 weeks

Payment Terms

T/T,Paypal

Supply Ability

100pcs/hour

RELATED PRODUCTS

0086-731-84874736

Contact Now

Product Description

Custom FR-4 4 Layers OSP PCB Assembly 5 Layer Count 0.10 Mm Hole Diameter

We have advanced manufacturing equipments,professional technology, professional engineer team,purchasing team,quality team and well trained operators to make sure the PCB assembly product with good&stable quality.

SMT Parameters:

Technology	Circuit	PCB/Flex/Metal PCB/Rigid-Flex	Parameter	Assembly Side	Single/Double
	Process	SMT		Min Size	10mm * 10mm
		THT		Max Size	410mm * 350mm
		Punch		Thickness	0.38mm ~ 6.00mm
		In-circuit Test Function Test		Min Chip	0201 chip
		Glue,Burn-in Conformal Coating		Fine-pitch	0.20mm
		BGA Re-work		BGA ball size	0.28mm

Technology Involved:

H 高	◆SMT+ICT+THT+FT ◆SMT+ICT+THT+Harness+Assembly+FT	◆SMT machine(for printing,pick place,reflow soldering) ◆THT machine(for wave soldering) ◆Terminal machine...	◆AOI ◆X-RAY ◆injection molding machine ◆AI(Automatic Inserting machine)...
M 中	◆SMT+ICT ◆THT+FT ◆SMT+THT ◆THT+Harness+FT ◆Assembly+FT	◆ Genera SMD+DIP ◆ DIP parts+ Harness ◆SMD+DIP+Harness without injection molding	◆≤0201 SMD ◆BGA,LGA,FBGA,LCC+LGA ◆Harness+injection molding ◆Conformal coating
S 低	◆纯SMT(Only SMT) ◆纯THT(Only THT) ◆纯线束(Only Harness) ◆纯组装(Only Assembly)	◆代工代料 Material+ Assembly	◆设计+代工代料 Design+Meterial+Assembly
	low	higher	highest

Special Technology Involved

◆ IC Programming

◆ BGA rework

◆ Chip on Board/COB

◆ Eutectic soldering

◆ Auto-Gluing

◆ Conformal Coating

OSP 5 Layer Quick Turn Pcb Manufacturer Factory 0

Assemly Flow Chart:

Suntek Group is a leading supplier in EMS field with one-stop solution for PCB/FPC assembly,Cable assembly,Mix technology assembly and Box-buildings.

Suntek Electronics Co., Ltd,as the major facility, located in Hunan Prov,China;

BLSuntek Electronics Co., Ltd,as the new facility,located in Kandal Prov,Cambodia.With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified,.We deliver qualified products with competitive price to clients all over the world.
