What Suntek Can Offer:
1) PCB and FPC bare board
2) PCB and FPC assembly
3) Components purchasing and matrials customization
4) One-stop of turnkey box build assembly
5) Mixed technology mix assembly
6) Cable assembly and wire harness
7) Low/mid/high volumn PCB assembly
8) BGA/QFN/DFN WITH X-ray insepction
9) IC programming/AOI/ICT/Functional test
Our Manufacturing Capability
| Item |
Paramter |
| Board Type: |
Rigid PCB, Flexible PCB, metal core PCB,Rigid-Flex PCB |
| Board Shape: |
Rectangular, Circular and any irregular Shapes |
| Max Size: |
400mm * 1200mm |
| Min Package: |
0201 |
| Fine Pitch Parts: |
0.25mm |
| BGA Package: |
Acceptable |
| DIP Capacity: |
3 DIP lines and 1 AI assembly line |
| Parts Sourcing: |
All by Suntek or partical consigned by customer |
| Parts Package: |
Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk |
| Testing: |
Visual inspection, AOI, X-RAY,Functional Testing |
| Types of Solder: |
Lead or Lea-free (RoHS Compliant) assembly |
| Assembly Option: |
Surface mount (SMT), Through-hole (DIP), Mixed technology
(SMT & Thru-hole) |
| Stencils: |
Laser cut stainless steel stencils,step-down stencil |
| File Formats: |
Bill of Materials,PCB(Gerber Files),Pick-N-Place File (XYRS) |
| Quality Grade: |
IPC-A-610 Class 2/Class 3 |

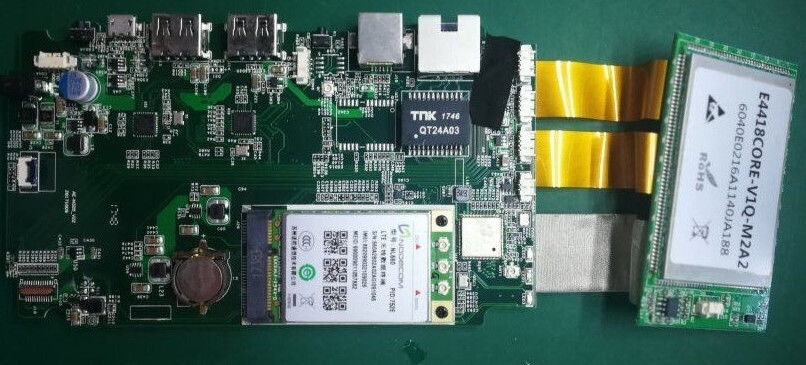

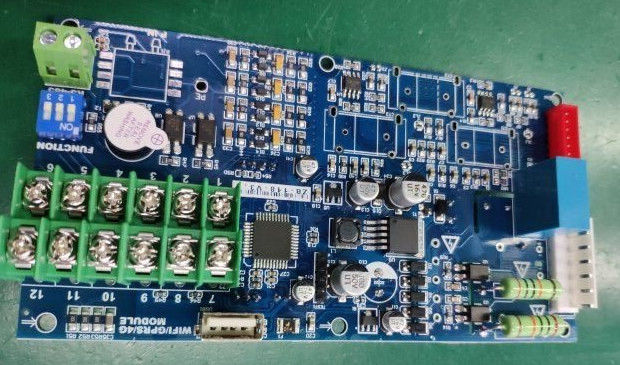

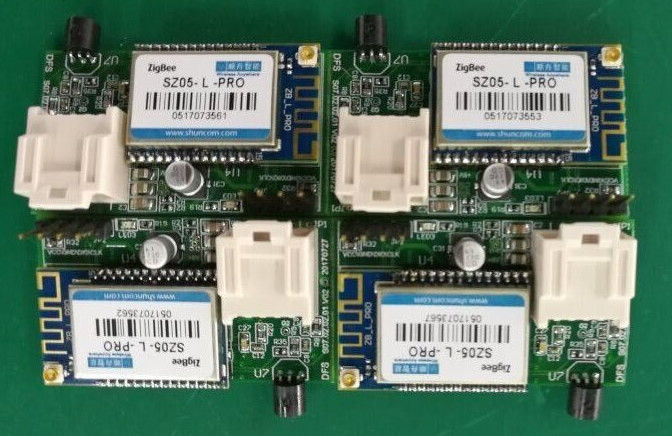

PCB Assembly
Our equipments include Desen Printing press,Samsung SMT, JT lead-free re-flow ovens, lead-free wave-soldering,BGA rework base,AI machine.
2) Surface mount,through-hole,BGA,QFP and QFN,0201 parts assembling.
3) AOl testing(X-ray for BGA package) for every piece board.
4)First article inspection before SMD process and First completed sample before DIP process.
5)Programming and function testing .
6)Conformal coating and Glue
EMS Advantages:
1) Strict product liability, taking IPC-A-610 standard
2) All teams can speak fluent English
3) PDCA management tool
4) 100% E-test,100% visual inspection, including IQC, IPQC, FQC, OQC
5) 100% AOI inspection, including X-ray, 3D microscope and ICT
6) High-voltage test,impedance control test
7) ISO9001,ISO13485,IATF16949 and UL certified
8) No minimum order quantity
9) Focus on low to medium volume production
10) Quick and on-time delivery
PCB assembly Quality System:
1)Our target: 95% customers satisfied.
2)Our quality policy: Continuous improvement makes the perfect quality, and reach a win-win relationship with customers.
3)Our solution: One-stop, Flexible, Continuous improvement.
4)Our business philosophy: Quality Wins Market, Ideas Create The Future.
5)Our vision: The long-term win-win partners in EMS field.
PCB/PCBA/Wire Harness Application:
