1) PCB and FPC bare board
2) PCB and FPC assembly
3) Components purchasing and matrials customization
4) One-stop of turnkey box build assembly
5) Mixed technology mix assembly
6) Cable assembly and wire harness
7) Low/mid/high volumn PCB assembly
8) BGA/QFN/DFN WITH X-ray insepction
9) IC programming/AOI/ICT/Functional test
One-Stop EMS Service:
| OEM service |
| Layers |
1-32 Layers |
Copper weight |
0.5 oZ~10 oZ |
| Material |
FR4(Tg 135-Tg180) 94v0,Rogers,Aluminum |
Board cutting |
Shear,V-score,tab-routed |
| Board type |
Rigid, flexable, rigid-flexable |
Silk screen |
Single double-sided green LPI etc |
| Board shape |
Rectangular,round,slots,cutouts etc |
Design file format |
Gerber, CAD,.BRD |
| Board Thickness |
0.2~5.0mm,Flex 0.01~0.25“ |
Bom format |
Excel,PDF
|
PCB Assembly
Our equipments include Desen Printing press,Samsung SMT, JT lead-free re-flow ovens, lead-free wave-soldering,BGA rework base,AI machine.
2) Surface mount,through-hole,BGA,QFP and QFN,0201 parts assembling.
3) AOl testing(X-ray for BGA package) for every piece board.
4)First article inspection before SMD process and First completed sample before DIP process.
5)Programming and function testing .
6)Conformal coating and Glue
EMS Advantages:
1) Strict product liability, taking IPC-A-610 standard
2) All teams can speak fluent English
3) PDCA management tool
4) 100% E-test,100% visual inspection, including IQC, IPQC, FQC, OQC
5) 100% AOI inspection, including X-ray, microscope and ICT
6) High-voltage test,impedance control test
7) ISO9001,ISO13485,IATF16949 and UL certified
8) No minimum order quantity
9) Focus on low to medium volume production
10) Quick and on-time delivery
PCB Assembly equipments:

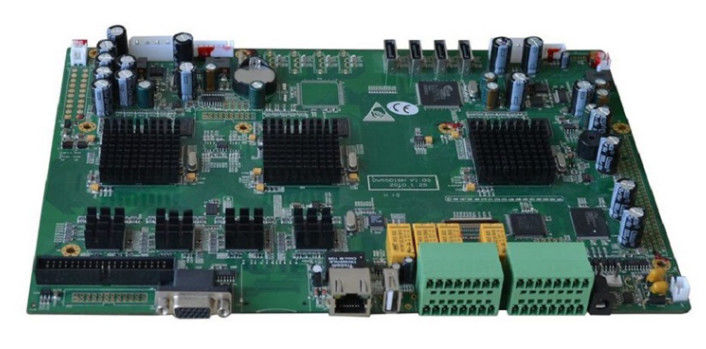

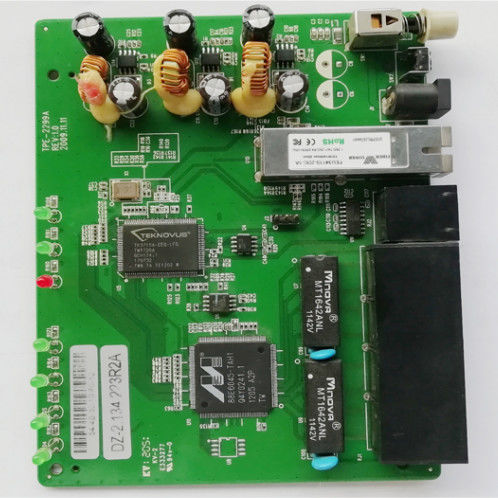

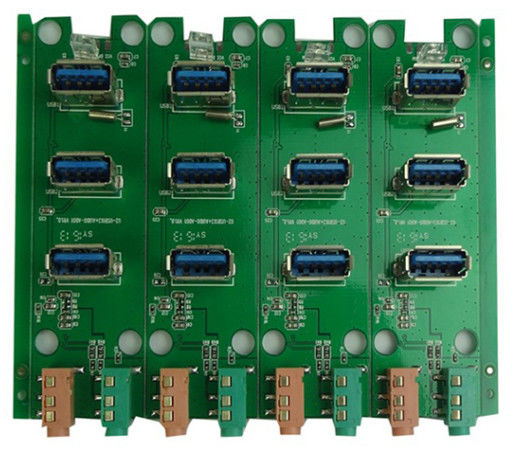

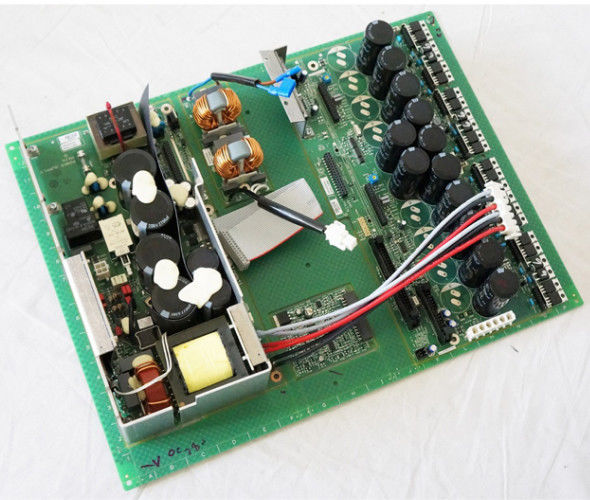

PCBA photos:
