Suntek is a leading EMS supplier based in Changsha, China, with over 10 years of experience in PCB assembly and cable assembly. Certified with ISO 9001:2015, ISO13485, IATF16949, and UL, we deliver qualified products at competitive prices to clients worldwide.
Product Description

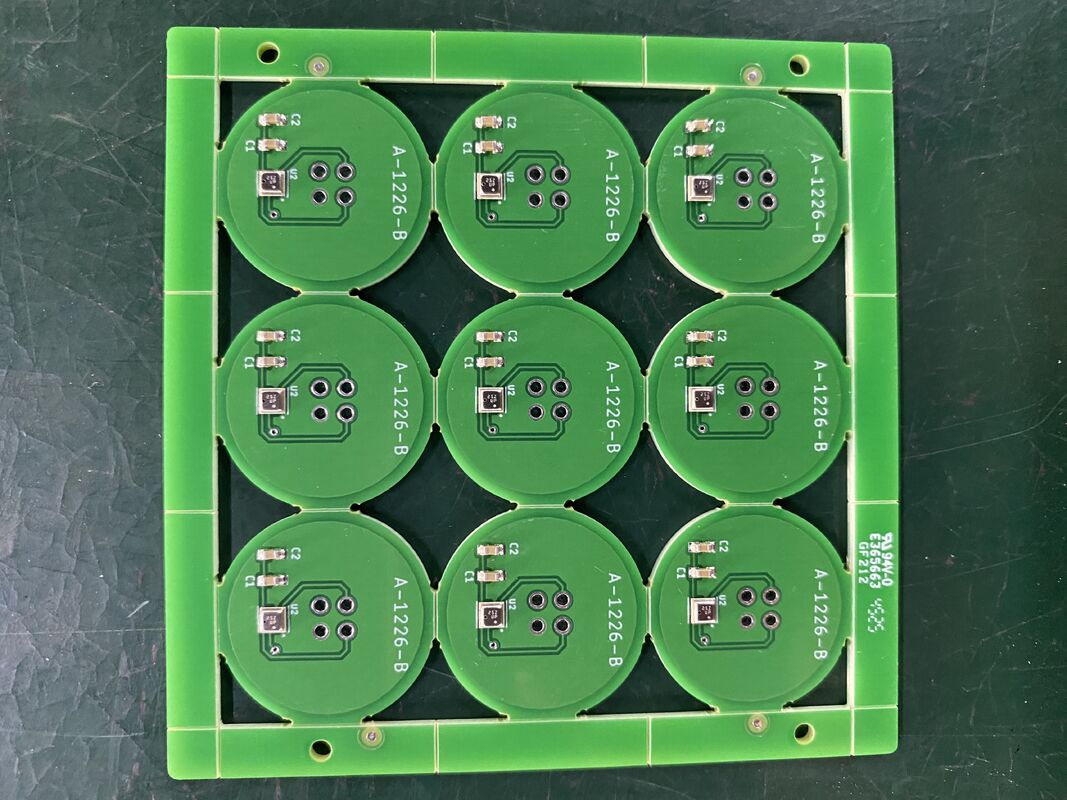

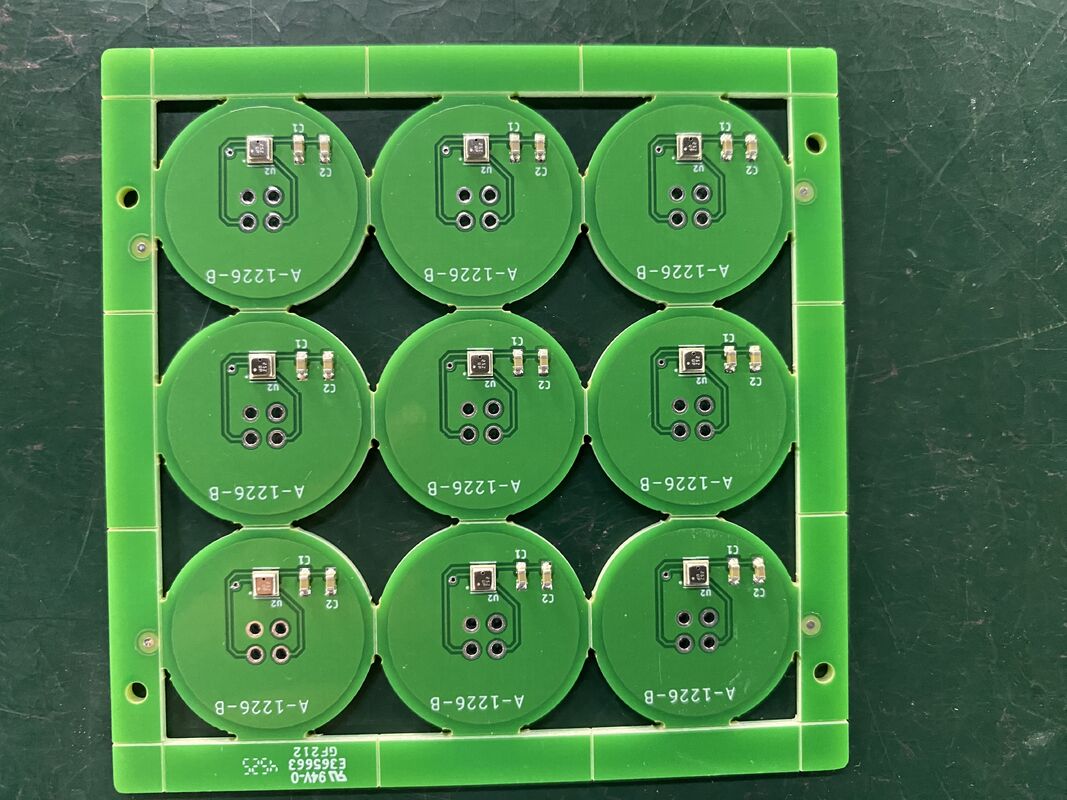

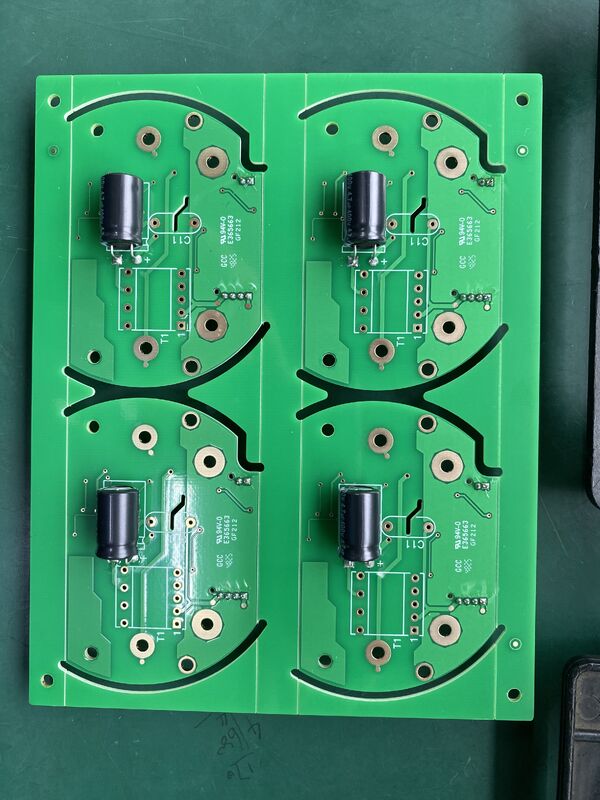

Our Medical PCB Assembly is a specialized solution for healthcare and biomedical industries, engineered for precision and reliability in critical medical device applications. Supporting board thicknesses from 0.2mm to 2.0mm, it accommodates both ultra-thin lightweight designs and robust thicker circuit boards for diverse medical equipment.
The assembly integrates both SMT and thru-hole techniques on ISO-certified production lines, ensuring compatibility with varied component types. A built-in battery power supply mode provides a compact, reliable power source ideal for portable and implantable medical devices. Silkscreen color options include white, black, yellow, and blue for easy component identification and brand alignment.
Features
- Product Name: Medical PCB Assembly
- Communication: USB 2.0
- Assembly Details: SMT and Thru-hole, ISO SMT and DIP lines
- Warranty: 1 year
- Layer Count: 2-16 Layers
- Finished Board Thickness: 0.2-7.0mm
- Built-in Battery Power Supply Mode
Technical Parameters
| Board Type | Rigid, Flexible, Rigid-Flexible |
| Finished Board Thickness | 0.2-7.0mm for Medical PCBA |
| Leadtime | 2-8 Weeks |
| Layer Count | 2-16 Layers |
| Temperature Unit | ℃ / ℉ |
| Size | 75 mm x 28 mm x 5 mm |
| Industry | Medical Devices |
| Item | ODM OEM LED PCBA |
| Silkscreen Color | White, Black, Yellow, Blue… |
| PCBA Test | AOI / ICT / FCT |
Applications
The Suntek Medical PCB Assembly (Origin: China/Cambodia, Dimensions: 75mm x 28mm x 5mm) is designed for compact, high-precision medical devices. Supporting USB 2.0 communication for fast data transfer and temperature monitoring in both ℃/℉, it is ideal for diagnostic tools, patient monitoring systems, portable medical instruments, and implantable devices.
With 2-16 configurable layers and board thickness from 0.2 to 7.0mm, it serves applications ranging from ECG machines and blood glucose monitors to infusion pumps and telemedicine platforms. Its robust construction and adherence to stringent quality standards ensure reliable performance in critical healthcare environments.
Customization
Suntek provides customized Medical PCB Assembly services with flexible silkscreen color options (white, black, yellow, blue), board thickness from 0.2mm to 2.0mm, and built-in battery power supply mode. Our ISO-certified SMT and DIP production lines ensure superior quality and performance tailored to your medical device requirements.
Support and Services
Our dedicated technical team offers comprehensive support including design consultation, process optimization, testing, troubleshooting, and integration assistance. Detailed documentation, training materials, and custom solutions are available to ensure seamless integration and compliance with medical industry standards.
Packing and Shipping
Each Medical PCB Assembly is packaged in anti-static bags with protective cushioning in high-quality boxes compliant with international medical device shipping standards. Shipments include tracking, detailed compliance documentation, and expedited options for urgent deadlines.
FAQ
Q1: What is the brand name?
A1: Suntek.
Q2: Where is it manufactured?
A2: China and Cambodia.
Q3: What industries is it suitable for?
A3: Medical devices and healthcare equipment requiring high reliability and precision.
Q4: What quality standards does it comply with?
A4: ISO 9001:2015, ISO13485, IATF16949, and UL certified, adhering to stringent medical industry standards.
Q5: What is the typical lead time?
A5: 2-8 weeks, depending on order complexity.
