Suntek is a leading EMS supplier based in Changsha, China, with over 10 years of experience in PCB assembly and cable assembly. Certified with ISO 9001:2015, ISO13485, IATF16949, and UL, we deliver qualified products at competitive prices to clients worldwide.
Product Description

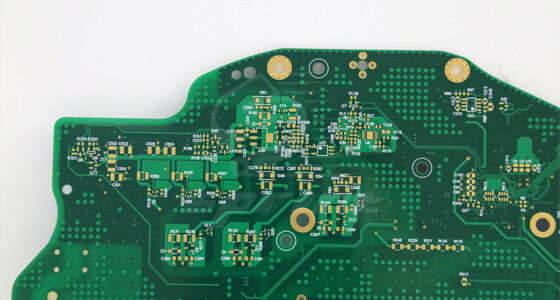

Our Medical PCB Assembly supports finished board thickness from 0.2mm to 7.0mm for versatile medical device applications. Featuring a built-in battery power supply mode, this assembly provides reliable compact power for portable and implantable medical equipment.
Manufactured on ISO-certified SMT and DIP production lines, the board supports 2-16 layers with USB 2.0 communication. Rigorous quality control including AOI, ICT, and FCT testing ensures consistent performance for healthcare applications.
Features
- Finished Board Thickness: 0.2-7.0mm
- Power Supply: Built-in Battery
- Communication: USB 2.0
- Layer Count: 2-16 Layers
- PCBA Test: AOI / ICT / FCT
- Industry: Medical Devices
Technical Parameters
| Solder Mask | Green, Blue, Black, Red, White, Matt Color |
| Surface Finish | HASL, ENIG, OSP, Hard Plating, Immersion Tin |
| Soldermask | Green |
| Assembly Type | Surface Mount Technology |
| Silk Screen | White |
| Min Space | 0.1MM / 4Mil |
| Layers | 6 Layers |
| Features | 100% E-test |
| Guarantee | 1-year |
| Lead Time | With Stocks |
The Suntek product (Origin: China/Cambodia) is designed for telecommunications, automotive electronics, consumer devices, and industrial control systems. With 1-22 layer support and 0.1mm minimum spacing, it delivers precise high-density PCB solutions for prototype development and mass production.
Compliant with IPC-6012D and manufactured on ISO-certified lines, this assembly ensures consistent electrical performance and mechanical stability for safety-critical applications.
Customization
Suntek offers professional customization based on your Gerber or CAD design files. Options include multiple soldermask colors, surface finishes, and layer configurations for compact, efficient PCB designs.
Support and Services
Our dedicated technical team provides comprehensive support including design consultation, assembly process optimization, post-production testing, and troubleshooting.
Packing and Shipping
All assemblies are packaged in anti-static bags with cushioning materials in sturdy boxes. Packages are clearly labeled with handling instructions and tracking information.
FAQ
Q1: Brand?
A1: Suntek.
Q2: Origin?
A2: China and Cambodia.
Q3: Lead time?
A3: 7-15 business days.
Q4: Custom designs?
A4: Yes, Gerber and CAD formats.
Q5: Standards?
A5: IPC-6012D, ISO 9001:2015 certified.
