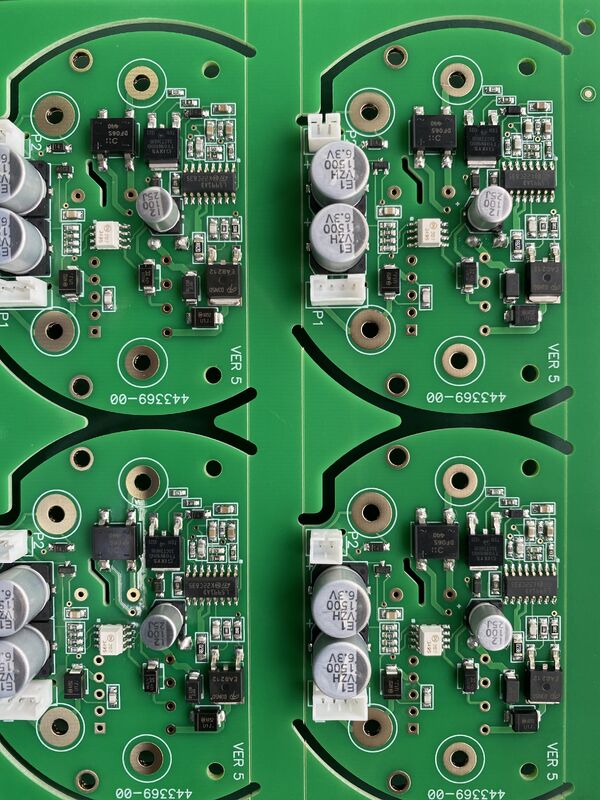

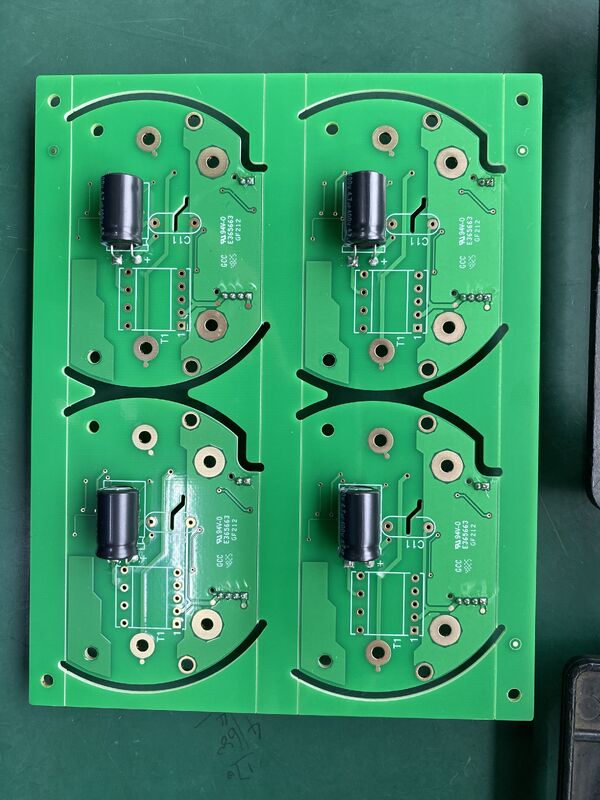

Red Solder Mask Surface Mount Technology Assembly Offering 100 Percent E test for Electronic Device Manufacturing Process

Product Description:

Our SMT PCB Assembly service offers a comprehensive and reliable solution for your printed circuit board manufacturing needs, ensuring high-quality results through advanced technology and meticulous attention to detail. Specializing in SMT PCB Manufacturing Service, we cater to a wide range of industries and applications, providing efficient and precise assembly with a minimum space of 0.1MM/4Mil between components. This fine pitch capability allows for complex and compact designs, meeting the demands of modern electronic devices.

We understand the importance of versatility and customization in electronic manufacturing. Therefore, our SMT PCB Assembly process supports multiple solder mask colors including green, blue, black, red, white, and matt color finishes. This variety not only enhances the aesthetic appeal of the PCB but also improves its functional properties such as insulation and protection against environmental factors. Our adherence to the IPC-6012D PCB standard guarantees the highest level of quality and reliability, ensuring that every assembled board meets stringent industry requirements.

Our Surface Mount Component Assembly encompasses a broad spectrum of component types, including resistors, capacitors, integrated circuits (ICs), diodes, LEDs, and many others. This extensive compatibility enables us to handle diverse projects ranging from simple circuit boards to intricate multi-layer designs. Each component is carefully placed and soldered using state-of-the-art equipment, ensuring optimal electrical performance and mechanical stability.

One of the key benefits of choosing our service is the lead time advantage. With a well-maintained inventory and efficient production workflow, we offer PCB assembly with stocks ready to be processed immediately. This significantly reduces turnaround times, allowing clients to accelerate their product development cycles and meet tight deadlines without compromising on quality.

Our Surface Mount Device Assembly process is designed to maximize efficiency and precision. By utilizing automated pick-and-place machines, reflow soldering ovens, and thorough inspection systems, we minimize human error and ensure consistent results across every batch. Our quality control procedures include optical inspection, X-ray analysis, and functional testing, providing confidence that each assembled PCB will perform reliably in its intended application.

Whether you require a prototype run or full-scale production, our SMT PCB Manufacturing Service is equipped to handle orders of varying sizes with equal dedication. Our team of experienced engineers and technicians work closely with clients to understand their specific requirements and provide tailored solutions that optimize cost, performance, and manufacturability.

In summary, our SMT PCB Assembly product combines advanced technology, comprehensive component compatibility, and strict adherence to industry standards to deliver superior Surface Mount Component Assembly and Surface Mount Device Assembly services. With a minimum space of 0.1MM/4Mil, multiple solder mask color options, compliance with IPC-6012D standards, and availability for immediate lead time with stocks, we are your trusted partner for all your SMT PCB manufacturing needs.

Features:

• Product Name: SMT PCB Assembly
• Complies with PCB Standard: IPC-6012D
• Available Solder Mask Colors: Green, Blue, Black, Red, White, Matt Color
• Supports up to 6 Layers
• Silk Screen Color: White
• Assembly Tolerance: ±0.1 mm
• Expert SMT PCB Manufacturing Service ensuring high-quality Surface Mount Device Assembly
• Precision Surface Mount Assembly Process for reliable and efficient PCB assembly

Technical Parameters:

Applications:

The Suntek SMT PCB Assembly product, model number 2026-PCBA-3275~9999, is designed to meet a wide range of application occasions and scenarios in the electronics manufacturing industry. Originating from China and Cambodia, this high-quality SMT Printed Circuit Assembly solution is ideal for clients seeking reliable and efficient SMT PCB Manufacturing Service. With its advanced features and versatile specifications, it fits perfectly into various industrial and commercial uses.

One of the primary application occasions for the Suntek SMT Electronic Circuit Assembly is in consumer electronics manufacturing. Devices such as smartphones, tablets, wearable technology, and home automation systems require compact, multi-layer PCBs with precise soldering and finishing. The Suntek product supports layouts of 1 to 22 layers, accommodating complex circuit designs with a minimum space of 0.1MM/4Mil, ensuring high-density component placement and excellent performance.

In the automotive industry, SMT Printed Circuit Assembly plays a crucial role in electronic control units, infotainment systems, and sensor modules. Suntek’s SMT PCB Assembly offers a variety of solder mask colors, including green, blue, black, red, white, and matt finishes, allowing manufacturers to meet aesthetic and functional standards. Moreover, the surface finishes available—HASL, ENIG, OSP, Hard Plating, and Immersion Tin—provide robust protection and reliable conductivity, essential for automotive-grade electronics exposed to harsh environments.

Industrial automation and IoT devices also benefit from the Suntek SMT PCB Manufacturing Service. The product’s stringent 100% E-test feature guarantees that every assembled PCB undergoes thorough electrical testing, reducing the risk of defects and enhancing overall system reliability. This makes it an excellent choice for mission-critical applications such as medical devices, aerospace systems, and telecommunications equipment where precision and durability are paramount.

Furthermore, the flexibility in solder mask colors and surface finishes allows designers and engineers to customize the SMT Electronic Circuit Assembly according to specific project requirements. Whether it’s prototyping new devices or mass production runs, Suntek’s SMT PCB Assembly ensures consistent quality and performance. Its multi-origin manufacturing base in China and Cambodia facilitates efficient supply chain management, meeting both cost and delivery demands.

In summary, the Suntek 2026-PCBA-3275~9999 SMT Printed Circuit Assembly is a versatile, high-performance solution suited for a broad spectrum of applications including consumer electronics, automotive, industrial automation, medical technology, and telecommunications. Its advanced manufacturing capabilities, comprehensive testing, and customizable options make it a preferred choice for companies seeking reliable SMT PCB Manufacturing Service and SMT Electronic Circuit Assembly solutions.

Customization:

Suntek offers professional SMT Board Assembly Service with high precision and reliability. Our SMT PCB Assembly product, model number 2026-PCBA-3275~9999, is manufactured in China and Cambodia, ensuring quality and cost-effectiveness.

We adhere to the IPC-6012D PCB Standard and maintain an assembly tolerance of ±0.1 mm to guarantee accurate and consistent SMT Printed Circuit Assembly. Our advanced SMT Electronic Circuit Assembly process includes a 100% E-test to ensure every board meets strict quality standards.

Our product features various surface finish options such as HASL, ENIG, OSP, Hard Plating, and Immersion Tin to suit different application requirements. With a 1-year guarantee, Suntek provides reliable and durable SMT PCB Assembly solutions tailored to your needs.

Support and Services:

Our SMT PCB Assembly product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We offer expert consultation during the design phase to help optimize your PCB layout for automated assembly processes. Our team provides detailed assembly guidelines, including component placement, soldering profiles, and inspection criteria.

In addition, we conduct rigorous quality control and testing procedures, including automated optical inspection (AOI), X-ray inspection, and functional testing to guarantee the reliability of each assembled PCB. Should you encounter any issues, our technical support team is available to assist with troubleshooting, defect analysis, and process improvements.

We also offer customization options tailored to your specific project requirements, including prototype runs, small to large-scale production, and quick-turn assembly services. Our commitment to continuous improvement and customer support ensures that you receive high-quality SMT PCB assemblies that meet your exact specifications.

Packing and Shipping:

Our SMT PCB Assembly products are carefully packaged to ensure maximum protection during transit. Each assembled PCB is placed in anti-static bags to prevent electrostatic discharge damage, followed by cushioning materials to absorb shocks and vibrations.

We use sturdy, high-quality cartons that are appropriately sized to minimize movement inside the box, reducing the risk of damage. For bulk orders, PCBs are separated with protective layers to avoid scratching or bending.

Shipping options include standard and expedited services, with tracking available for all shipments. We work with trusted carriers to ensure timely and safe delivery to your specified location.

For international shipments, we provide all necessary documentation and comply with customs regulations to facilitate smooth clearance. Our packaging and shipping process is designed to deliver your SMT PCB Assemblies in perfect condition, ready for immediate use.

FAQ:

Q1: What is the brand name of the SMT PCB Assembly product?

A1: The brand name of the SMT PCB Assembly product is Suntek.

Q2: What model numbers are available for this SMT PCB Assembly?

A2: The available model numbers range from 2026-PCBA-3275 to 2026-PCBA-9999.

Q3: Where is the SMT PCB Assembly manufactured?

A3: The SMT PCB Assembly is manufactured in China and Cambodia.

Q4: What types of components can be assembled using this SMT PCB Assembly?

A4: The SMT PCB Assembly can handle a wide variety of surface-mount components including resistors, capacitors, ICs, and other standard SMT parts.

Q5: Is there a minimum order quantity for the SMT PCB Assembly?

A5: The minimum order quantity may vary depending on the specific model and requirements; please contact Suntek for detailed order information.
